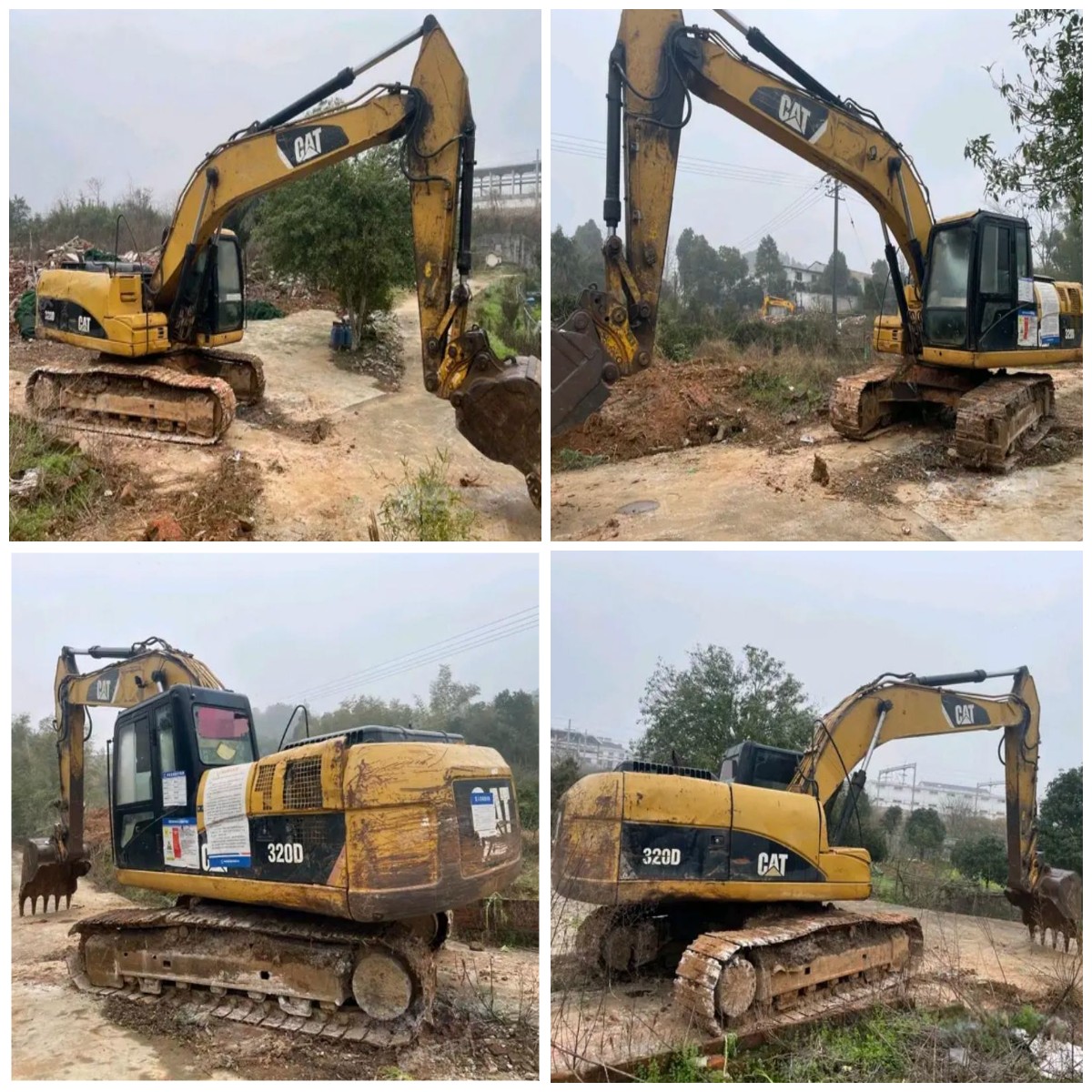

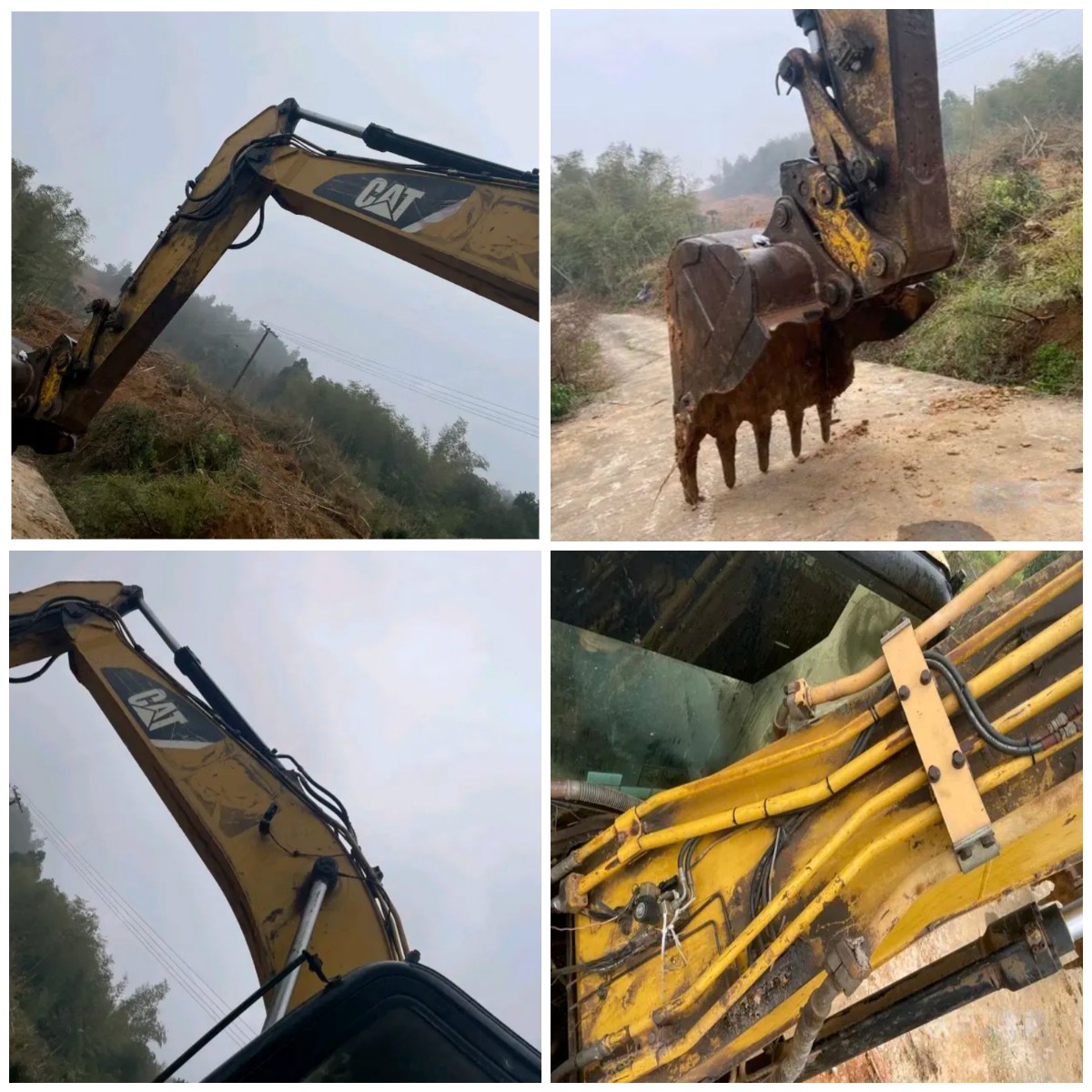

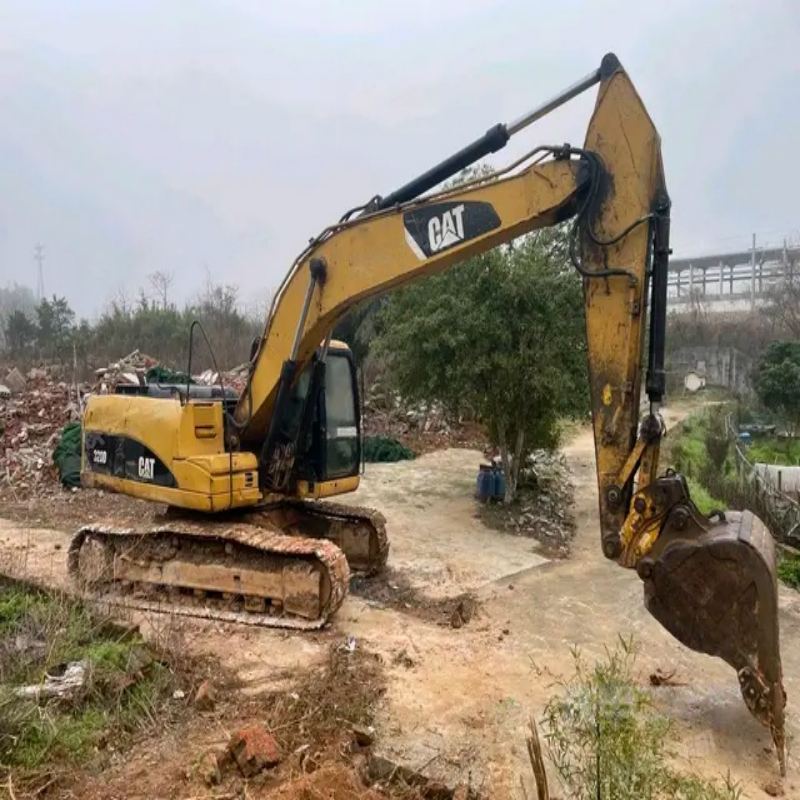

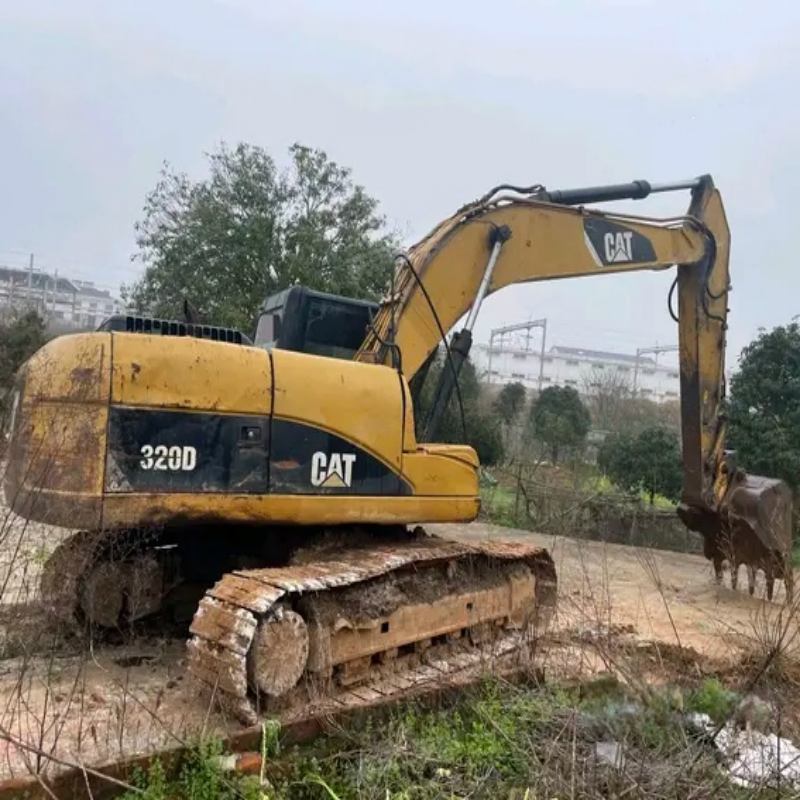

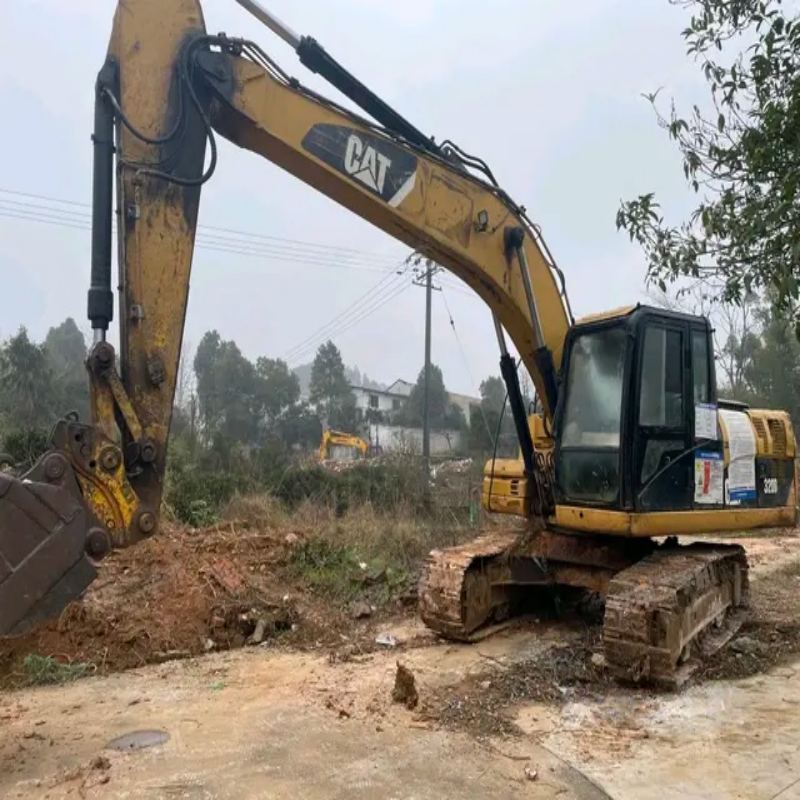

2012 Caterpillar 320D Hydraulic Excavator - Ready for Africa
✅ Exceptional Maintenance – Meticulously serviced with 16,000 hours, requiring no immediate repairs.
✅ Brand New Undercarriage – Recently fitted with a complete new track chain assembly, ensuring years of reliable service.
✅ Proven Cat® Reliability – Renowned Caterpillar C6.4 ACERT engine and durable hydraulic system for consistent performance.
✅ High Productivity & Efficiency – Powerful digging forces and optimized hydraulics deliver excellent fuel economy and output.
✅ Operator-Focused Cabin – Comfortable, spacious ROPS/FOPS cab with excellent visibility for long shifts.
✅ Outstanding Value – A dependable, high-performance machine at a fraction of the cost of a new model, ideal for Africa's growing markets.
2012 Caterpillar 320D Hydraulic Excavator - Ready for Africa
Presenting a 2012 Caterpillar 320D Hydraulic Excavator in outstanding condition, perfectly suited for the demanding construction and mining landscapes of Africa. With 16,000 well-documented hours and a strict adherence to maintenance schedules, this machine is offered in "ready-to-work" condition, requiring no immediate investment in repairs. Its most notable feature is a brand-new undercarriage, virtually eliminating a major wear component and providing exceptional value. Powered by the reliable Cat® C6.4 ACERT engine and designed for versatility, the 320D is a top choice for contractors seeking a balance of power, efficiency, and legendary Caterpillar durability.
Technical Specifications Table
Category | Specification |
General Information | |
Model | Caterpillar 320D Hydraulic Excavator |
Manufacturing Year | 2012 |
Operating Hours | 16,000 hours (verified, fully documented) |
Operating Weight | 20,930 kg (standard configuration) |
Overall Dimensions (L×W×H) | |
Ground Clearance | 450 mm |
Work Range & Performance | |
Max. Digging Depth | 6,710 mm |
Max. Digging Radius | 9,850 mm |
Max. Dumping Height | 6,500 mm |
Max. Reach at Ground Level | 9,850 mm |
Max. Lift Height | 9,840 mm |
Engine System | |
Engine Model | Cat® C6.4 ACERT™ |
Net Power | 103 kW @ 2,000 rpm |
Gross Power | 111 kW @ 2,000 rpm |
Engine Type | Water-cooled, 6-cylinder, 4-stroke diesel |
Emission Standard | EU Stage IIIA / U.S. Tier 3 equivalent |
Fuel Tank Capacity | 410 L |
Hydraulic System | |
Main Pump Max. Flow | 205 L/min (dual pump) |
System Pressure | 35 MPa (work circuit), 35 MPa (travel), 25 MPa (swing) |
Swing Speed | 11.5 rpm |
Swing Torque | 62 kN·m |
Undercarriage System | |
Track Shoe Width | 600 mm (standard) |
Track Gauge | Standard or long track option available |
Travel Speed | 3.5 / 5.7 km/h (low / high) |
Drawbar Pull | 206 kN |
Operator Cab & Comfort | |
Cab Type | Pressurized, ROPS/FOPS certified, sound-insulated cabin |
Visibility | 360° panoramic view with minimal blind spots |
Monitoring System | Full-color graphic display for real-time diagnostics |
Air Conditioning | Standard cold/warm AC system |
Maintenance & Fluids | |
Hydraulic Oil Capacity | 260 L (total system) |
Hydraulic Oil Change | Every 3,000 hours or 18 months (extendable to 6,000 hrs with SOS testing) |
Engine Oil Capacity | 30 L |
Engine Oil Change Interval | Every 500 hours |
Coolant Capacity | 25–29 L |
Filter Replacement | Every 500 hours (fuel, oil, air) |
Detailed Features & Advantages
1. Powertrain & Performance
Engine: Equipped with the robust Cat® C6.4 ACERT™ diesel engine, delivering a net power of 103 kW (138 HP). This engine is known for its fuel efficiency, strong torque, and compliance with Tier 3/Stage IIIA emissions standards, making it reliable and suitable for various fuel qualities.
Performance: The machine offers a bucket digging force of 140.1 kN and a stick digging force of 106.4 kN, providing ample power for tough digging and loading tasks. Its hydraulic system is designed for smooth, responsive operation, enhancing productivity.
Fuel Efficiency: Advanced engine and hydraulic management systems contribute to lower fuel consumption compared to previous models, reducing your operating costs significantly.
2. Undercarriage & Structural Integrity
New Undercarriage: This unit boasts a completely new track chain assembly, including shoes, links, and rollers. This critical renewal ensures superior traction, stability, and longevity, representing significant savings on future maintenance.
Robust Construction: With an operating weight of approximately 20,930 kg, the 320D is built with a reinforced structure to withstand rigorous working conditions common in African mining and earthmoving projects.
Mobility: Features a maximum travel speed of 5.6 km/h and a drawbar pull of 206 kN, allowing for efficient movement around the job site.
3. Hydraulic System & Attachments
Hydraulic System: Features a high-capacity system with a main pump flow of 205 L/min, ensuring fast cycle times for digging, lifting, and swinging. The system's layout minimizes pressure drops and heat generation, enhancing reliability.
Versatility: Compatible with a wide range of Cat® attachments, including various bucket sizes (standard ~1.0 m³), hydraulic hammers, and grapples, making it ideal for multiple applications from trenching to material handling.
Cooling: Enhanced cooling system design helps maintain optimal operating temperatures even in Africa's high-ambient heat conditions.
4. Operator Cabin & Controls
Cab Comfort: The pressurised and sound-insulated ROPS/FOPS certified cab offers a spacious work environment, reduced noise levels, and excellent 360-degree visibility for safe and efficient operation.
Controls: Intuitive joystick controls and a clear monitoring display allow operators to work with precision and reduced fatigue.
Serviceability: Strategically placed service points and extended maintenance intervals for filters and fluids simplify routine upkeep, minimizing downtime.
5. Condition & Africa Market Suitability
Documented History: "Maintenance到位" (well-maintained) status is backed by service records, confirming care for the engine, hydraulics, and major components.
Proven in Africa: The Caterpillar 320 series is one of the most popular and trusted models in the African used equipment market due to its durability, performance, and excellent parts and service support network.
Cost-Effective Solution: This machine offers the perfect blend of Caterpillar quality and affordability, providing a low-risk, high-return investment for expanding businesses.
Professional Applications
This Caterpillar 320D is perfectly capable of handling a wide array of projects across Africa:
General Construction: Foundation digging, site preparation, trenching for utilities, and building construction.
Road & Infrastructure: Highway and rural road development, drainage work, and slope trimming.
Quarry & Mining: Material loading, overburden removal, and stockpile management in medium-scale operations.
Agricultural Development: Dam and pond construction, land clearing, and irrigation channel digging.
Urban Development: Demolition, recycling, and landscaping projects in growing cities.
Service & Support:
Pre-Sale Services:
Free consultation & detailed product information.
High-resolution photos & inspection reports available upon request.
After-Sale Support:
Assistance with installation, testing, and operator training.
Access to technical manuals & spare parts supply.
Optional Caterpillar-certified maintenance services.
