Zoomlion ZD160-6 Bulldozer Africa Sale
✅ Low-Hour Modern Machine – 2019 model with only 3,100 hours, offering near-new performance.
✅ Robust 160HP Engine – Powerful and fuel-efficient Tier 3 compliant engine for demanding tasks.
✅ Advanced Hydraulics – Precise blade control and smooth operation via load-sensing system.
✅ Operator Comfort Focus – Climate-controlled ROPS/FOPS cab with modern controls.
✅ Africa-Ready Design – Enhanced cooling package and sealed components for harsh environments.
✅ Strong Resale Potential – Backed by Zoomlion's reputation and global service network.

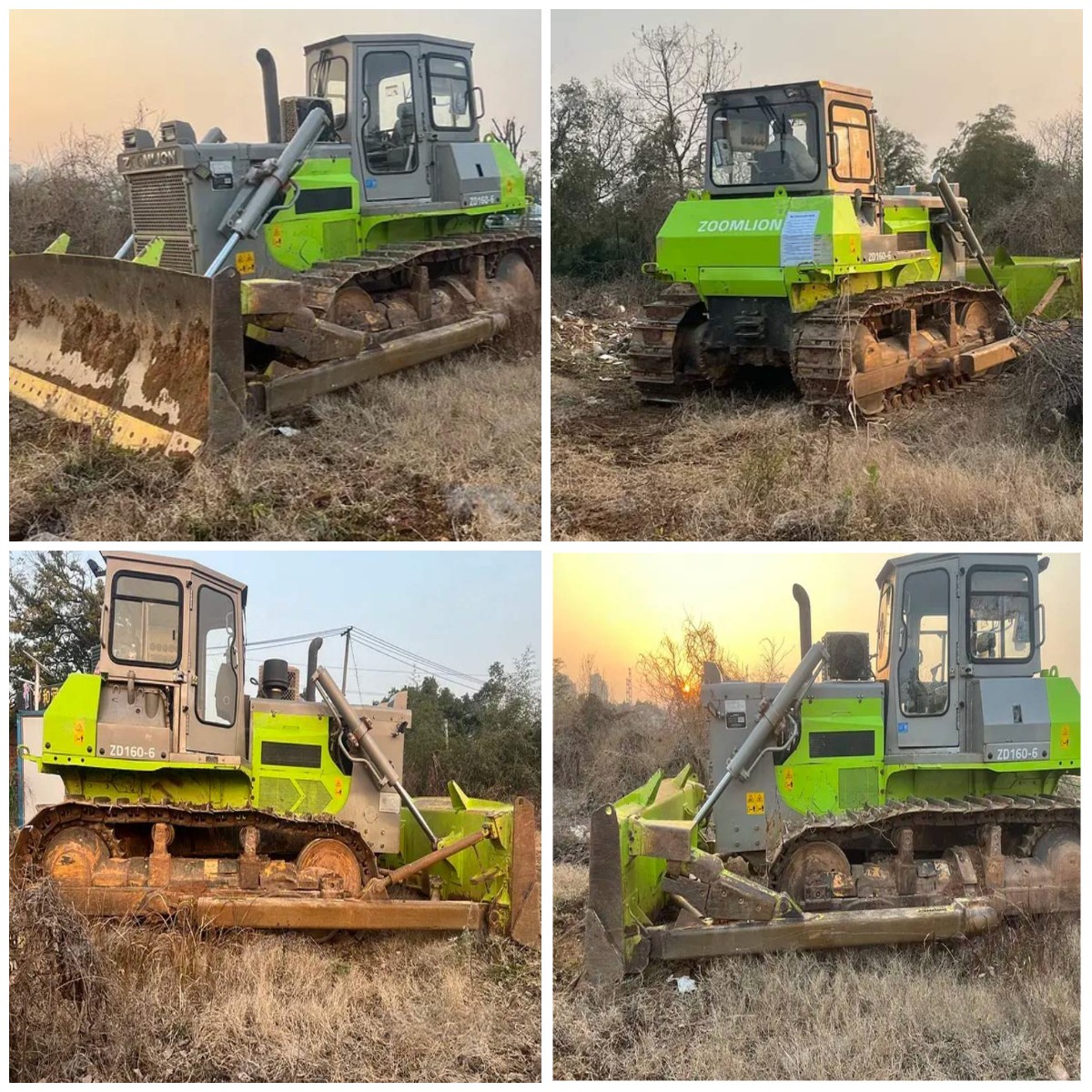

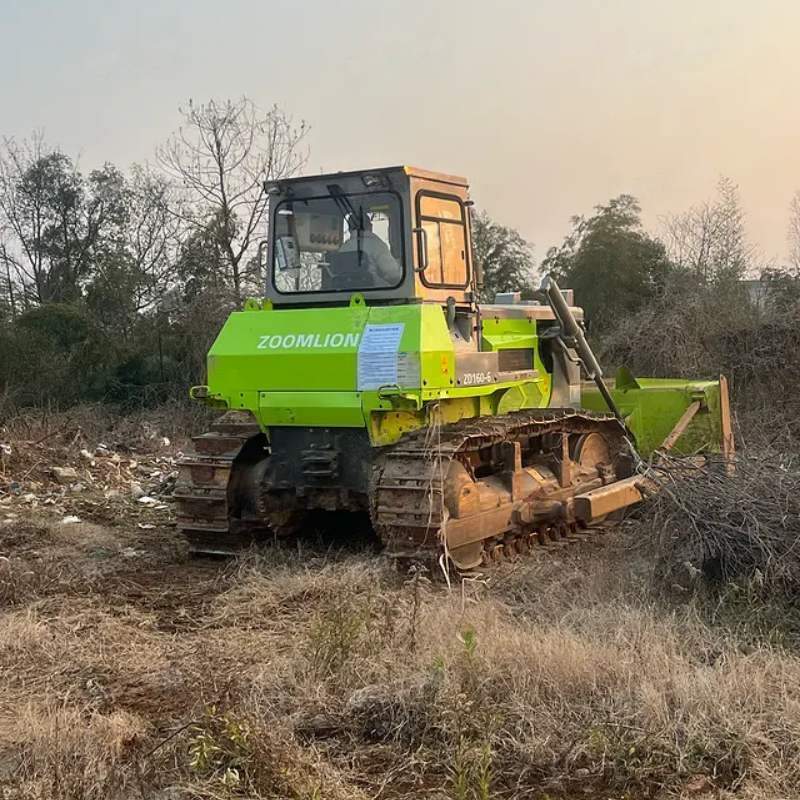

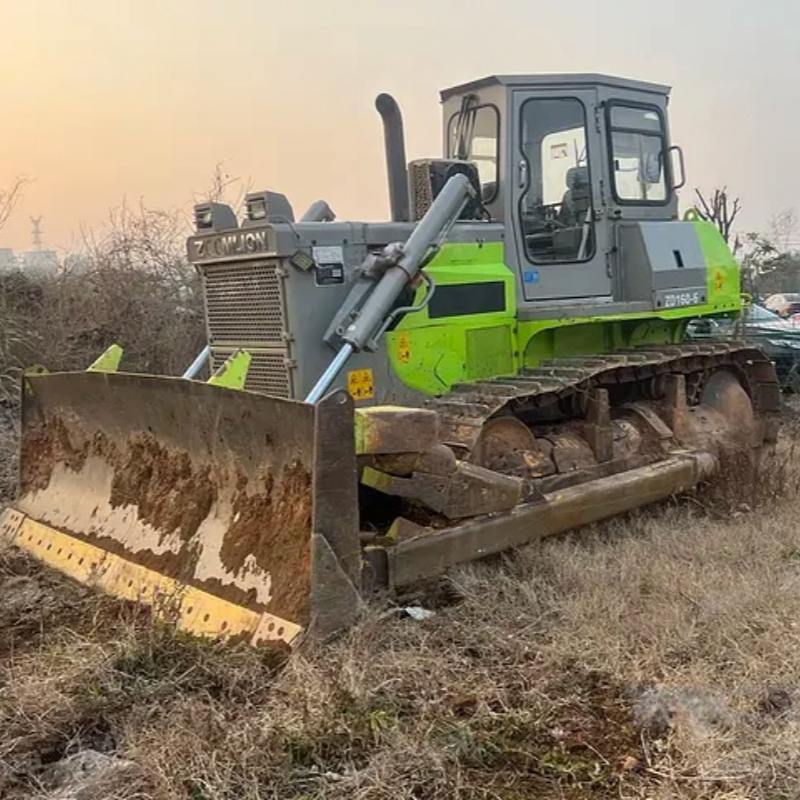

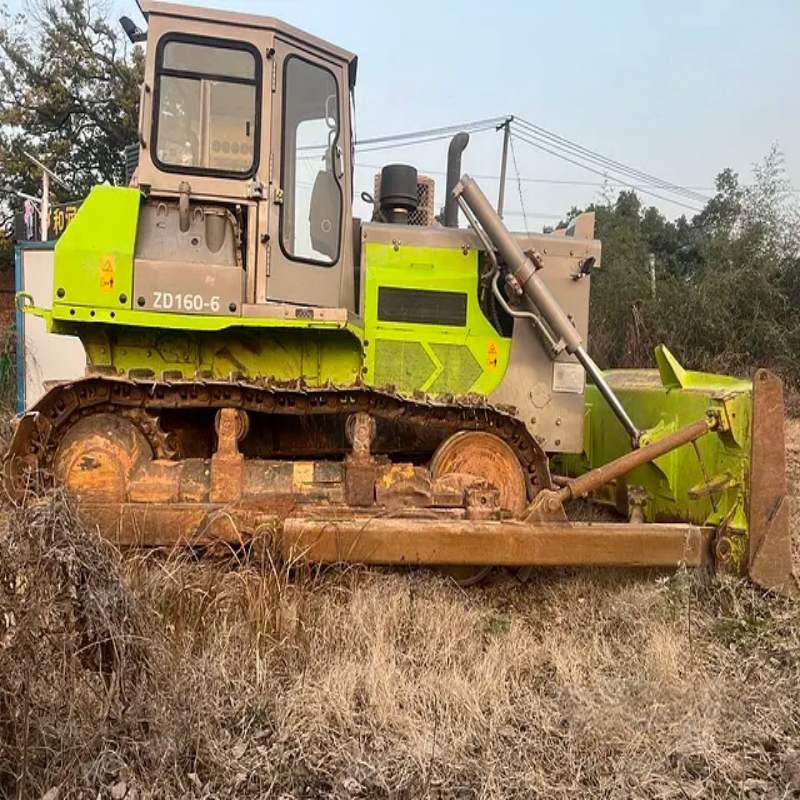

Zoomlion ZD160-6 Bulldozer Africa Sale
Introducing a highly sought-after 2019 Zoomlion ZD160-6 crawler bulldozer, now available for sale in the African market. With just 3,100 operating hours, this machine presents an exceptional combination of modern technology, proven reliability, and significant remaining service life. It's ideally suited for medium to large-scale earthmoving projects such as road construction, mining support, and infrastructure development. Built with a focus on operator comfort, fuel efficiency, and durability, the ZD160-6 stands out as a versatile and cost-effective solution for contractors looking to expand their fleet capabilities without the expense of new equipment.
Technical Specifications
Category | Specification |
Model | Zoomlion ZD160-6 |
Year Manufactured | 2019 |
Operating Hours | 3,100 hrs |
Operating Weight | ~16,800 kg |
Overall Length | 5,180 mm |
Overall Width | 3,370 mm |
Overall Height | 3,060 mm |
Ground Clearance | 420 mm |
Engine Make/Model | WEICHAI WP4.6N / Domestic Equivalent |
Net Power Output | 119 kW (160 HP) @ 2,200 rpm |
Max Torque | ~750 N.m |
Emissions Standard | China Stage III B / EPA Tier 3 Equivalent |
Fuel Tank Capacity | 300 Liters |
Transmission Type | Powershift (3 forward / 3 reverse gears) |
Hydraulic Pump Flow | 2 x 130 L/min |
Blade Type | Semi-U Blade (Standard); Optional Straight/Angle Blades Available |
Blade Capacity | ~4.2 m³ |
Maximum Drawbar Pull | > 150 kN |
Track Shoe Width | 560 mm (Triple-Sealed) |
Number of Track Shoes | 42 pcs per side |
Travel Speeds (F/R) | F1: 0~3.3 km/h / F2: 0~5.9 km/h / F3: 0~9.7 km/h |
Minimum Turning Radius | ≤ 4.8 meters |
Braking System | Wet Multi-Disc Brakes |
Cab Certification | ROPS/FOPS Certified |
Air Conditioning | Yes (Optional) |
Main Monitor Size | 7-inch Color LCD Display |
Detailed Features & Advantages
1. Engine & Powertrain Performance
Engine: Equipped with a powerful, eco-friendly 119kW (160HP) diesel engine meeting Tier 3 emission standards.
Technology: Features advanced electronic control for optimized fuel consumption and power delivery.
Transmission: A robust 3F/3R powershift transmission ensures smooth gear changes and efficient power transfer, crucial for maintaining productivity in varied terrain.
Cooling System: An enlarged, high-efficiency cooling module prevents overheating in high ambient temperatures typical across Africa.
2. Hydraulic System & Blade Control
System Type: Load-sensing, variable displacement hydraulic system for responsive and precise control.
Flow Rate: Dual pump system delivering up to 260 L/min ensures swift and powerful blade movements.
Control Valves: Pilot-operated hydraulic valves offer fine control over blade lift, tilt, and angle functions.
Implement Options: Compatibility with various blade types (straight, angle, U-blade) and optional ripper attachment increases job site versatility.
3. Undercarriage & Mobility
Track Configuration: Standard 560mm triple-sealed track shoes provide excellent ground contact and durability.
Ground Pressure: Balanced weight distribution results in low ground pressure (approximately 58 kPa), minimizing surface damage.
Steering: Hydrostatic steering system enables tight turning radius and precise maneuverability on congested sites.
Travel Speeds: Multi-speed travel settings allow operators to select optimal speeds for transport vs. working modes.
4. Operator Environment & Technology
Cab Design: ROPS/FOPS certified, spacious cabin featuring air conditioning, sound dampening materials, and vibration isolation mounts for operator comfort during long shifts.
Controls: Ergonomic joystick controllers and intuitive dashboard layout simplify operation and reduce learning curve.
Display Panel: LCD monitor provides real-time diagnostic information, maintenance reminders, and operational data logging.
Visibility: Wide-angle windows and strategically placed mirrors enhance all-around visibility for safe operation.
5. Maintenance & Durability
Accessibility: Centralized grease points and easily accessible service doors streamline routine maintenance procedures.
Protection: Sealed wiring harnesses and high-quality filtration systems protect sensitive components from dust ingress—a key factor in African operating conditions.
Materials: Use of hardened steel alloys in critical wear areas extends component lifespan between replacements.
Documentation: Comes with comprehensive service history confirming regular upkeep according to manufacturer guidelines.
Professional Applications
Road & Highway Construction: Ideal for cut-and-fill operations, embankment building, and shoulder grading where accuracy matters.
Mining Industry Support: Suited for haul road maintenance, spoil pile shaping, and general site cleanup within quarries or open-pit mines.
Agricultural Development: Effective tool for land clearing, contouring fields, constructing farm ponds, and preparing irrigation channels.
Urban Infrastructure Projects: Perfect fit for residential/commercial site preparation, utility trench covering, and parking lot grading.
Disaster Recovery Efforts: Rapid deployment capability makes it valuable for clearing debris and restoring access routes post-emergency events.
Service & Support:
Pre-Sale Services:
Free consultation & detailed product information.
High-resolution photos & inspection reports available upon request.
After-Sale Support:
Assistance with installation, testing, and operator training.
Access to technical manuals & spare parts supply.
Optional Caterpillar-certified maintenance services.
